Technical data on item group 12981000
Industrial Gigabit Ethernet bridging fiber optic converter SFP

Industrial Gigabit Ethernet bridging fiber optic converter SFP
Robust Industrial Gigabit Ethernet bridging media converter in fanless metal case. The modular SFP fiber optic connection slot, the redundant DC power input ports, the isolated signal contact, the mounting options for 35mm DIN rail or wall mounting and the extended temperature range allow the use in almost all areas of industrial data communication.

Technical data
ProductIndustrial Gigabit Ethernet media converter
Port(s) electrical1x 10/100/1000MBit 1000Base-TX Gigabit Ethernet RJ-45
Port(s) optical1000Base-X SFP slot for Gigabit Ethernet SFP modules
Transmission
Store and Forward
LLF Link Lose Forwarding
LFP Link Fault Pass Through
Bit rate
RJ-45
optisch
10/100/1000MBit/s
1000MBit/s
Flow controlIEEE 802.3x Flow Control and Back Pressure
Framesize9 KBytes Jumbo Frame support
LEDs
system:fault
power 1
power 2
red
green
green
fiber optic:link / activegreen
RJ-45:link / active
1000MBit/s
green
yellow
DIP switch
DIP 1ON = Power Alarm enabled
DIP 2ON = Link Loss Forward & Link-Fault-Pass-Through enabled
Casingfanless IP30 metal case
Mounting35mm DIN rail and wall mountable
DimensionsWxDxH 30x95x140mm
Fault Alarm Contactpresent
Power requirements12V..48V DC redundant
Removable Terminal Block
Polarity Reverse Protection
Overload Current Protection
Power consumption5.28 Watt
Operating temperature
ArtikelBetriebstemperatur
129810001-10°C bis +70°C
129810002-40°C bis +75°C
EMI electromagnetic interferenceFCC Class A
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-4-11
CE EN61000-4-12
CE EN61000-6-2
CE EN61000-6-4
Stability testsIEC60068-2-32 (free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Safety Standard(s)UL, cUL, CE EN60950-1
Ordering information item
Ordering information Accessories
12233405Gigabit Ethernet SFP multimode 850nm 550m -40°C..+85°C DDM
12233402Gigabit Ethernet SFP multimode 1310nm 2km -40°C..+85°C DDM
12233420Gigabit Ethernet SFP singlemode 1310nm 20km -40°C..+85°C DDM
122354053GbE BiDi SFP multimode TX:1310nm RX:1550nm 500m -40°C..+85°C
122354055GbE BiDi SFP multimode TX:1550nm RX:1310nm 500m -40°C..+85°C
122354203GbE BiDi SFP singlemode TX/RX:1310/1550nm 20km -40°C..+85°C DDM
122354205GbE BiDi SFP singlemode TX/RX:1550/1310nm 20km -40°C..+85°C DDM
079868596DIN rail power supply 24V DC 0.5A
10154524RPower supply DIN rail mountable 24V DC 45W/2A
060812231Field installable RJ-45 plug for installation cable
063600001DIN rail installation panel for 19 inch distribution rack
Dimensional drawing

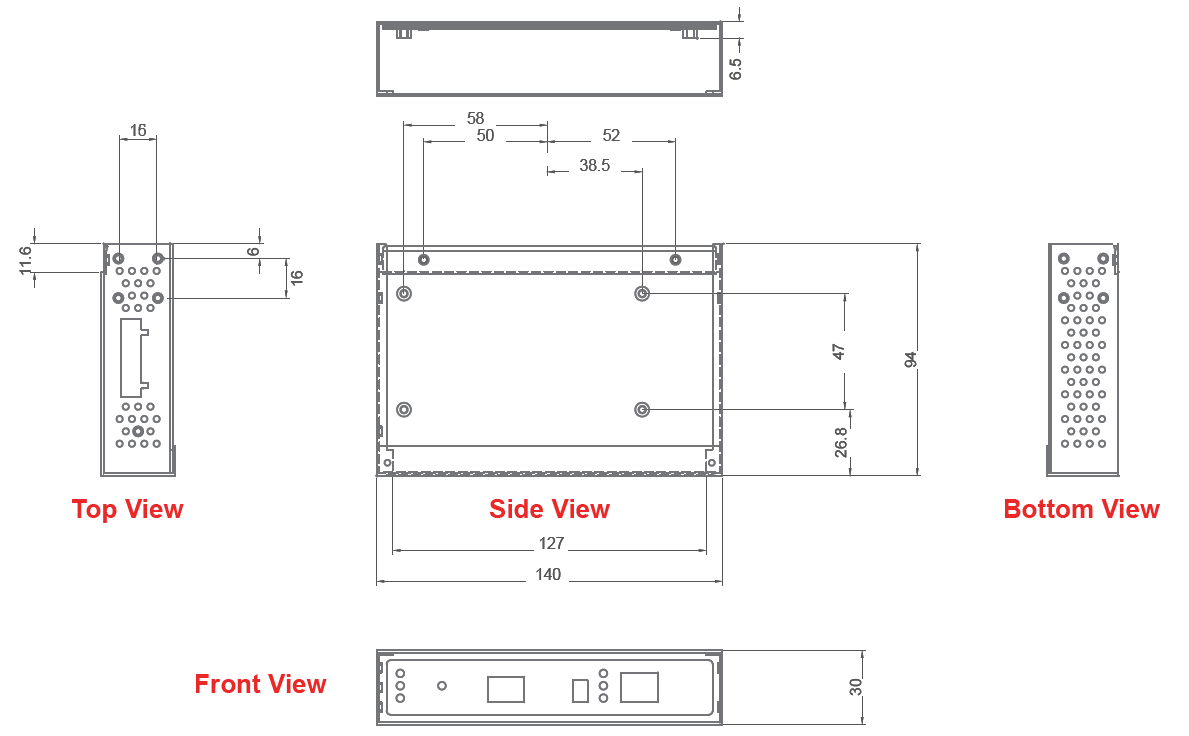

dimensional drawing 12981000 Industrial Gigabit Ethernet bridging fiber optic converter SFP
