Technical data on item group 12965006
5 port Industrial Gigabit PoE+ switch IN: 24V OUT: 4x PoE+ 30W

5 port Industrial Gigabit PoE+ switch IN: 24V OUT: 4x PoE+ 30W
Rugged 5 port Industrial Gigabit Ethernet High PoE Power over Ethernet switch in fanless metal case.
Four RJ-45 ports provide data transmission and operating current up to 30 W per end device.
An additional uplink port provides the connection to the network
The input voltage range of 12V..36V DC allows the operation in 24V areas without additional use of transformers.
The redundant DC power input ports, the isolated alarm contact, the mounting options for 35mm DIN rail or wall mounting and the extended temperature range allow the use in almost all areas of industrial data communication.

Technical data
EMS electromagnetic sensitivityIEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
ProductIndustrial Ethernet PoE switch with
4 Gigabit Ethernet RJ-45 high PoE ports
input voltage 12..36V DC
Data ports5x Gigabit Ethernet RJ-45
Bit rate5x 10/100/1000MBit/s Gigabit Ethernet full duplex RJ-45 ports
Flow controlIEEE 802.3x Flow Control and Back Pressure
PoE ports4x PoE+ (High PoE) max. 30W /Port
Pins 1+ 2+ 3- 6-, Mode A
PoE Budget
Input
Voltage
12V DC
24V DC
36V DC
PoE
Budget
60W
120W
120W
Pin assignment PoE1,2+ 3,6-, Mode A
Framesize10.0KBytes Jumbo Frame Support
LEDs
system:fault
power 1
power 2
red
green
green
per port:link / active / speed / PoE status
Casingfanless IP30 metal case
Mounting35mm DIN rail mountable
wall-/panel mounting
both included in delivery
DimensionsWxHxD 46x142x99mm
Fault Alarm Contact24V DC, 1A resistive
Weightnetto 0,7kg
verpackt 0,9kg
Power requirementsInput voltage 12..36V DC at screw terminal
removable terminal block
Operating temperature-40°C ... +75°C
Storage temperature-40°C ... +85°C
relative humidity
(non condensing)
5% ... 95%,
EMI electromagnetic interferenceFCC Part 15 Subpart B Class A, CE EN 55022 Class A
Stability testsIEC60068-2-32 (free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Safety Standard(s)FCC, CE
Country of originTaiwan
Ordering information item
1296500625 port Industrial GbE PoE+ switch IN: 24V OUT: 4x PoE+ 30W exTm
Ordering information Accessories
114462512PoE Power over Gigabit Ethernet splitter 12V 25W IEEE802.3at
114462524PoE Power over Gigabit Ethernet splitter 24V 25W IEEE802.3at
114462612PoE Power over Gigabit Ethernet splitter 12V 25W IEEE802.3at DR
114462624PoE Power over Gigabit Ethernet splitter 24V 25W IEEE802.3at DR
063600001DIN rail installation panel for 19 inch distribution rack

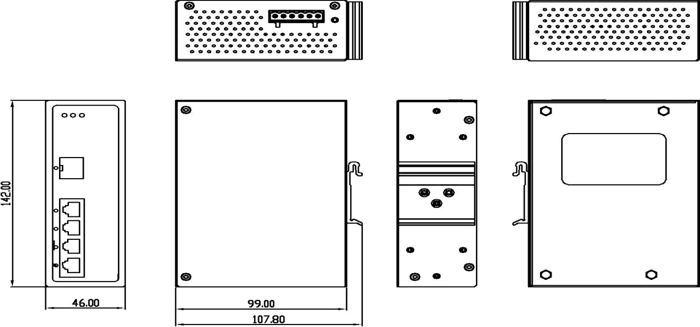

Dimensional drawing
dimensional drawing 12965006 5 port Industrial Gigabit PoE+ switch IN: 24V OUT: 4x PoE+ 30W
The product description has been prepared with great care. No liability is accepted for fallacies or errors. Subject to change.
