Technical data on item group 12965005
5 port Industrial Gigabit PoE+ switch 4x IEEE 802.3at 30W

5 port Industrial Gigabit PoE+ switch 4x IEEE 802.3at 30W
Rugged 5 port Industrial Gigabit Ethernet High PoE Power over Ethernet switch in fanless metal case.
Four RJ-45 ports provide data transmission and operating current up to 30W per end device.
An additional uplink port provides the connection to the network
The redundant DC power input ports, the mounting options for 35mm DIN rail or wall mounting and the extended temperature range allow the use in almost all areas of industrial data communication.

Technical data
ProductIndustrial Ethernet PoE switch with
4 Gigabit Ethernet RJ-45 high PoE ports
Housingfanless IP30 metal case
DimensionsWxHxD 30x95x75mm
Power requirementsInput voltage 48..55V DC at screw terminal
removable terminal block
according to PoE standard:
51V..55V DC = IEEE 802.3at
48V..55V DC = IEEE 802.3af
Data ports5x Gigabit Ethernet RJ-45
Bit rate5x 10/100/1000MBit/s Gigabit Ethernet full duplex RJ-45 ports
Flow controlIEEE 802.3x Flow Control and Back Pressure
Address Table8K
PoE ports4x PoE+ (High PoE)
IEEE 802.3at/af
max. 30W /Port
Budget 120W
Framesize10KBytes Jumbo Frame Support
LEDsPower
link / active / PoE status
Mounting35mm DIN rail mountable
wall-/panel mounting
both included in delivery
Operating temperature-40°C ... +75°C
Power consumptionohne PoE: 5.5W
PoE Budget: 120W
Storage temperature-40°C ... +85°C
relative humidity
(non condensing)
5% ... 95%
Stability testsIEC60068-2-32 (free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Protection
Surge protection2000 VDC
ESD6000 VDC
Safety Standard(s)FCC, CE
Ordering information item
1296500525 port Gigabit industrial switch 4x PoE+ 30W -40..+75°C
Ordering information Accessories
11526048RPower supply 100-264V AC, OUT: 48V-56V DC, 60W, -20-70°C DIN r
115212048Industry power supply DIN rail 48V..55V DC 120W 2.5A -25~+70°C
115212401DIN rail-power supply 120W 48V/2,5A (48V..55V DC) -20°+70°C
115224048Industry power supply DIN rail 48V..55V DC 240W 5A -25~+70°C
063600001DIN rail installation panel for 19 inch distribution rack

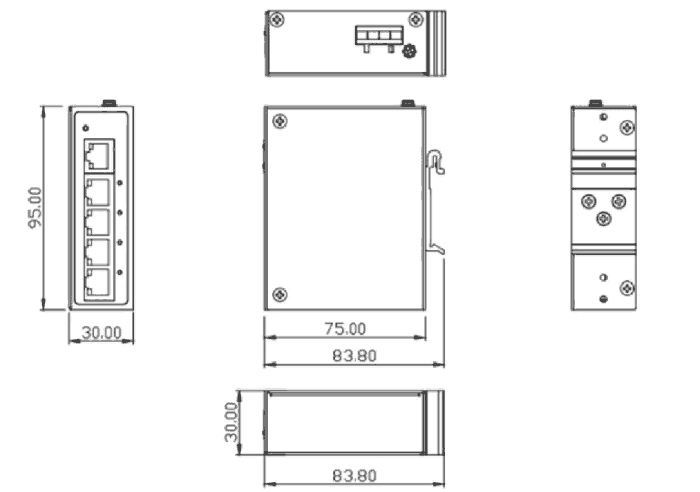

Dimensional drawing
dimensional drawing 12965005 5 port Industrial Gigabit PoE+ switch 4x IEEE 802.3at 30W
The product description has been prepared with great care. No liability is accepted for fallacies or errors. Subject to change.
