Technical data on item group 1296202
Industrial Gigabit high PoE injector 12V/24V/48V DC 30W

Industrial Gigabit high PoE injector 12V/24V/48V DC 30W
The Industrial Gigabit PoE Power over Ethernet injector feeds PDs (powered devices) with data and max. 30 Watt operating current, that are equipped either with a PoE port according to IEEE 802.3at or IEEE 802.3af standard or non PoE end devices via a PoE splitter. The wide range input allows operation with 12V, 24V and 48V DC operating voltage. The mounting on a 35mm DIN rail, the extended temperature range with -40°C up to +85°C operating temperature and the rugged fanless metal case are ideal conditions for operation in industrial environments.

Technical data
ProductIndustrial PoE Power over Ethernet injector
IEEE 802.3at / IEEE 802.3af
12V DC ... 55V DC
max. 30W output
Casingfanless IP30 metal case
DimensionsWxHxD 26x95x75mm
Power requirements12V DC ... 55V DC redundant
Power consumptionmax. 1.44W + PoE
ProtectionOverload Current Protection
Reverse Polarity Protection
Data portsInput: RJ-45
output: RJ-45
Bit rate10/100/1000MBit/s Full Duplex
Mounting35mm DIN rail mountable
wall-/Panelmontage
both included in delivery
Operating temperature-40°C ... +85°C
relative humidity
(non condensing)
5% ... 95%
EMI electromagnetic interferenceEN61000-6-4 Class A,
EN61000-6-2 Class A,
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8 (Magnetic Field)
Stability testsShock: IEC60068-2-27
Free Fall: IEC60068-2-32
Vibration: IEC60068-2-6
Safety Standard(s)CE EN55022/EN61000-6-4 Class A
FCC Part 15 Subpart B Class A
Ordering information item
129620201Industrial Gigabit high PoE injector Vin:12V~55V DC 30W
Ordering information Accessories
114461524PoE splitter 24V DC 12W 0.5A -25..+60°C for DIN rail
114462624PoE splitter 40..60V DC 24V / 1.04A 25W GbE 802.3at DIN rail
11526048RPower supply 100-264V AC, OUT: 48V-56V DC, 60W, -20-70°C DIN r
063600001DIN rail installation panel for 19 inch distribution rack

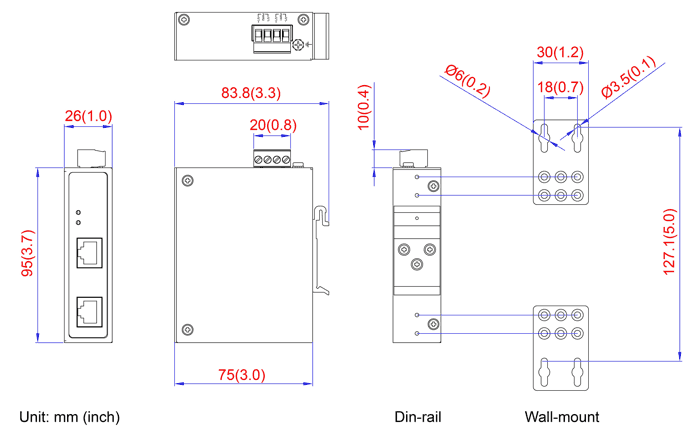

Dimensional drawing
dimensional drawing 1296202 Industrial Gigabit high PoE injector 12V/24V/48V DC 30W
