Technical data on item 11522024R
DIN rail power supply IN:85-264V AC, OUT:24V DC, 24W/1A

Switching power supply for mounting on 35mm DIN rail with 20W power output with 84% efficiency and low dissipation, protection against short circuit, overload and overvoltage.
Technical data
Dimensions	WxHxD 22.5 x 90 x 100 mm
Weight	170g
Input Voltage	85V ... 264V AC 120V ... 370V DC
Outpunt Voltage	nominal 24V DC Regelbereich 21.6V .. 26.4V
Efficiency	84%

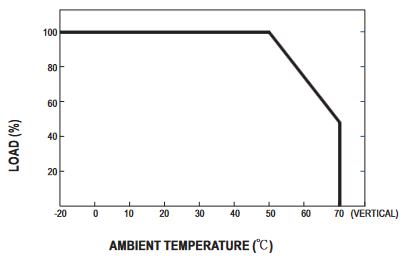

Operating temperature	-20°C ... +70°C (>50°C derating)
relative humidity (non condensing)	20% ... 90%
EMI electromagnetic interference	BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
MTBF	236.9K hrs min. MIL-HDBK-217F (25°C)
Approvals	UL508, TÜV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1
Protection	Overload Overvoltage 105% ... 160% radted output power Protection type : Constant current limiting, recovers automatically after fault condition is removed 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
Ordering information item 11522024R Power supply DIN rail 85..264V AC -> 24V DC 1.0A 24W -20..70°C

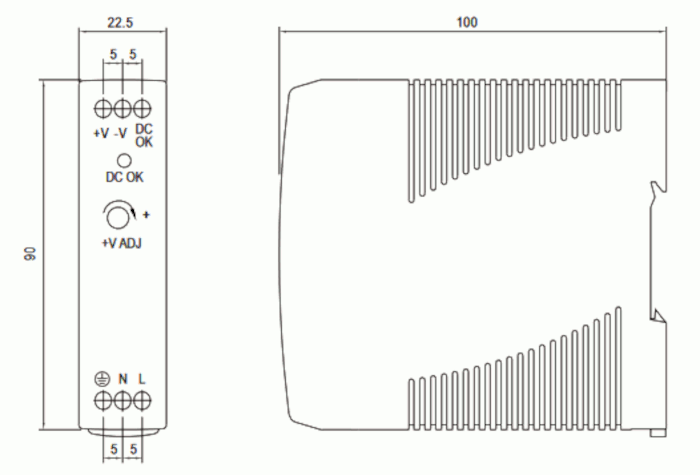

Dimensional drawing
The product description has been prepared with great care. No liability is accepted for fallacies or errors. Subject to change.
