Technical data on item group 11449556
Gigabit Ethernet PoE++ injector 90W 11..60V DC -> IEEE 802.3bt

Gigabit Ethernet PoE++ injector 90W 11..60V DC -> IEEE 802.3bt
The Industrial ultra high power Gigabit Ethernet PoE++ (Power over Ethernet) injector feeds devices according to IEEE 802.3bt standard with 10/100/1000MBit/s 1000Base-T Gigabit Ethernet and up to 90W operating current. With the extended temperature range and the mounting option on the DIN rail the device is suitable for using in industrial environments.

Technical data
ProductPoE++ injector Gigabit Ethernet up to 90W
Port(s) electricalData input:
10/100/1000MBit/s 1000Base-T Gigabit Ethernet
PoE portsData output:
10/100/1000MBit/s 1000Base-T Gigabit Ethernet

current output:
+56V 90W
Load min./max.0A / 1.67A
Load reg.5 %
line reg.1 %
Ripple1 %
Noise1 %
Noise bandwidth is from DC to 20MHz
Ripple and Noise measured by paralleling a 0.1uF metalize capacitor on the test point
LEDsPower PSE ready
CasingPlastic case
Mounting35mm DIN rail mount
DimensionsWxDxH 66x102x125mm
Power requirements11V .. 60V DC
Efficiency90% min at full load
Operating temperature-40°C .. +70°C
CoolingFanless
relative humidity
(non condensing)
5% .. 90%
Standard(s)IEEE 802.3bt
ProtectionInput protection: Fuse
Output Short GND Terminal will not damage the Power Supply and will auto-Reset.
Input Reverse Protection: No Work
Overcurrent802.3bt Class 8 (96.6W) @ all DC Input F.L,
Country of originTaiwan
Ordering information item
114495561Gigabit Ethernet PoE++ injector 90W 11..60V DC -> IEEE 802.3bt

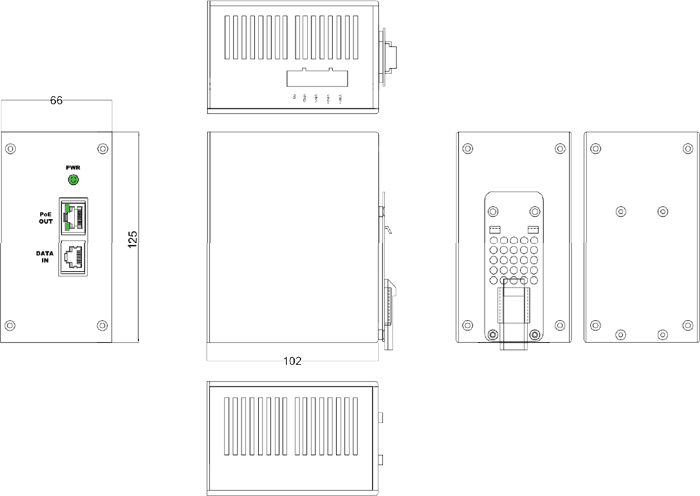

Dimensional drawing
dimensional drawing 11449556 Gigabit Ethernet PoE++ injector 90W 11..60V DC -> IEEE 802.3bt
