Industrial Gigabit Ethernet PoE injector IEEE 802.3bt 90W

Industrial Gigabit Ethernet PoE injector IEEE 802.3bt 90W
The Industrial Gigabit Ethernet PoE++ (Power over Ethernet) injector feeds end devices according to IEEE 802.3bt standard with 5GBase-T up to 5 Gigabit Ethernet and up to 90W operating current. With the extended temperature range and the mounting option on DIN rail, the device is suitable for using in industrial environments.
The extended range for operating voltage of 40V DC up to 72V DC allows the standard conform operation of PoE cameras or other PoE end devices even where 48V DC or 60V DC are available.

Technical data
ProductPoE++ injector 5 Gigabit Ethernet up to 90W IEEE 802.3bt
Port(s) electricalData input:
10/100/1000/5000MBit/s 5GBase-T
5 Gigabit Ethernet
PoE portsData output:
10/100/1000/5000MBit/s 5GBase-T
5 Gigabit Ethernet

current output:
+56V 90W
Load min./max.0.01A / 1.61A
Load reg.5 %
line reg.1 %
Ripple1 %
Noise1 %
Noise bandwidth is from DC to 20MHz
Ripple and Noise measured by paralleling a 0.1uF metalize capacitor on the test point
LEDs
LED 1
LED 2
red
green
no PoE end device detected
PoE end device IEEE 802.3af / at / bt detected
HousingPlastic case
Mountingoptional 35mm DIN rail mountable
DimensionsLxWxH 140x150x40mm
Power requirements40V .. 72V DC
Efficiency80% min (full Load) 40V DC .. 72V DC
Operating temperature-40°C .. +70°C
CoolingFanless
relative humidity
(non condensing)
5% .. 90%
Standard(s)IEEE 802.3bt
IEEE 802.3at
IEEE 802.3af
ProtectionInput protection: Fuse
Output Short GND Terminal will not damage the Power Supply and will auto-Reset.
Input Reverse Protection: No Work
Overcurrent802.3bt Class 8 (96.6W) @ all DC Input F.L,
Country of originTaiwan
Ordering information item
114489481Industrial PoE injector 1/5 Gigabit Ethernet IEEE 802.3bt 90W
114489482Industr.PoE injector Gigabit Ethernet IEEE 802.3bt 90W DINrail
Ordering information Accessories
101417601Industrial 10-Gigabit Ethernet PoE splitter IEEE 802.3bt PoE++
Dimensional drawing

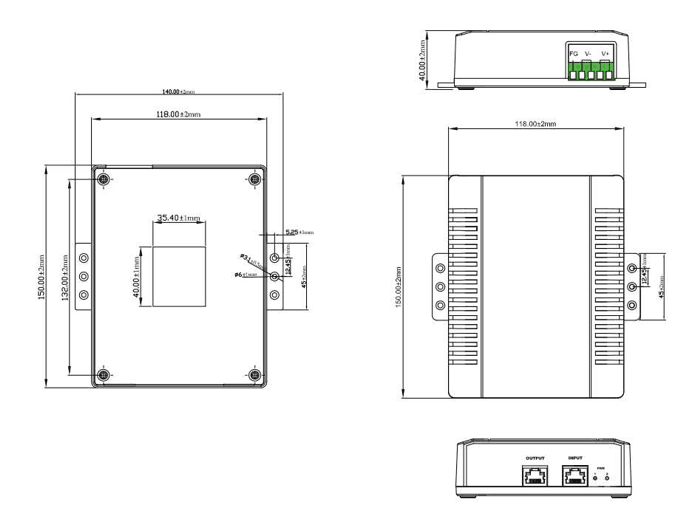

dimensional drawing 11448948 Industrial Gigabit Ethernet PoE injector IEEE 802.3bt 90W
