Technical data on item group 11444598
PoE injector 5 Gigabit Ethernet IN:12V/24V DC OUT: IEEE 802.3af

The Industrial 5 Gigabit Ethernet Power over Ethernet injector feeds devices according to IEEE 802.3af standard with 100Base-TX Fast Ethernet or 1000Base-T or 5GBase-T Gigabit Ethernet data and 16.8W operating current Integrated mounting holes enable wall mounting without additional Panels or mounting on 35mm DIN rail in combination with snap-in elements.
Technical data
Product	Industrial Ethernet PoE injector according to IEEE 802.3af standard for bandwidths up to 5 GbE (5GBase-T) with approval for railway and marine.
Port(s) electrical	Data input: 100Base-TX Fast Ethernet 1000Base-T Gigabit Ethernet 5GBase-T 5 Gigabit Ethernet
PoE ports	Data output: corresponding to data input current output: +48V 16.8W Load min./max. 0A / 0.35A Load reg. 5 % line reg. 1 % Ripple 1 % Noise 1 % Noise bandwidth from DC to 20MHz Ripple and Noise measured by paralleling a 0.1uF metalize capacitor on the test point
Pin assignment PoE	pin 1 2 3 4 5 6 7 8 data A+ A- B+ C+ C- B- D+ D- power V DC (+) V DC (+) V DC (-) V DC (-)
LEDs	IEEE 802.3af PoE ok: Green
Housing	item housing fastening 11444598M 11444598N metal metal wall DIN rail
Dimensions	LxWxH 82x56x33mm without screw-wings (see dimensional drawing)
Power requirements	10V DC .. 36V DC 2.34A @ 10V DC 0.65A @ 36V DC
Efficiency	72% min. at full Load @ 10V DC - 36V DC input voltage

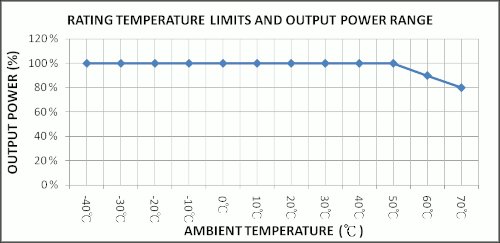

Operating temperature	-40°C .. +70°C, > 50°C derating
Cooling	Fanless - Free air cooling
Storage temperature	-40°C .. +85°C
relative humidity (non condensing)	5% .. 90%
Compliance	FCC Class B, EN55032 Class B, EN62368-1, EN45545, EN60945 marine, EN50155 railway
Protection	Input protection: Fuse Dual Input Pin and Reverse Protection: No Work Output Short GND Terminal will not damage the power supply and will Auto-Reset
Overcurrent	802.3af limits @ 10..36V DC F.L
Country of origin	Taiwan
Ordering information item 11444598M PoE injector 5 GbE IN:10-36V OUT:IEEE 802.3af metal case 11444598N PoE injector 5GbE IN:10-36V OUT:802.3af metal case DIN-rail Ordering information Accessories 114461412 PoE splitter 12V DC 12W 1.0A -25..+60°C 114461424 PoE splitter 24V DC 12W 0.5A -25..+60°C

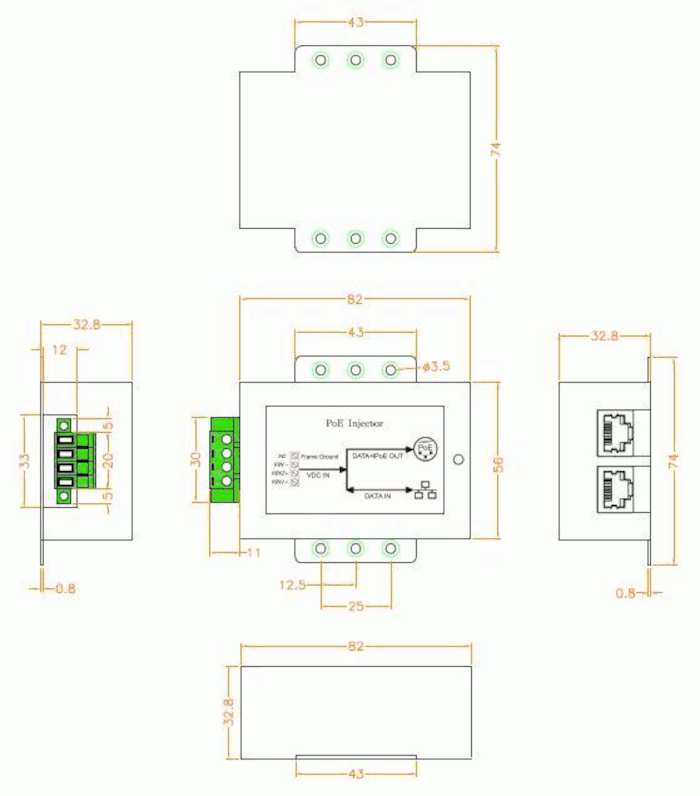

Dimensional drawing
