Technical data on item group 11443357
GbE PoE injector Vin:100-240V AC Vout:56V DC PoE 60W permanent

GbE PoE injector Vin:100-240V AC Vout:56V DC PoE 60W permanent
The passive Industrial high power Gigabit Ethernet PoE (Power over Ethernet) injector feeds devices with 10/100/1000MBit/s 1000Base-T Gigabit Ethernet and up to 60W operating current permanent.

integrated mounting holes enable wall mounting without additional Panels or mounting on 35mm DIN rail in combination with snap-in elements.

Technical data
ProductIndustrial Gigabit Ethernet PoE injector 60W high power
Port(s) electricalData input: 10/100/1000MBit/s 1000Base-T Gigabit Ethernet
PoE portsData output:
10/100/1000MBit/s 1000Base-T Gigabit Ethernet

current output:
+56V max. 60W 1.07A
permanent (passive)
Load min.0 A
Load reg.5 %
line reg.1 %
Ripple1 %
Noise2 %
Noise bandwidth from DC to 20MHz.
Terminated with a 47uF Capacitor and 0.1uF MPE Capacitor of Proper polarity
HousingPlastic
MountingWall mountable
optional DIN rail mountable
DimensionsLxWxH: 125x72x38mm
Power requirements
input Voltage:
Input Frequency:
Input current:

Incrush current:
100V AC .. 240V AC (@120V/230V)
47Hz .. 63Hz
0.68A / 120V AC @ F.L.
0.34A / 230V AC
25A max. / 120V AC
50A / 230V AC
Efficiency81% min. @ 120V ~ 230V AC input @ F.L.
Operating temperature-40°C ... +50°
CoolingFanless - Free air cooling
Storage temperature-40°C ... +85°
relative humidity
(non condensing)
5% ... 90%
ComplianceFCC Class B
EN55032 Class B
IEC/EN62368-1
ProtectionInput protection: Fuse
Output Short GND Terminal will not damage the power supply and will Auto-Recover when Load status reaches normal values.
Surge Suppression:
IEC61000-4-2 (ESD) 15kV (air), 8kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 20A (8/20?s)
Overcurrent150% .. 200% @ 90V AC .. 240V AC
Ordering information item
114433567GbE PoE injector Vin:100-240V AC Vout:56V DC PoE 60W permanent
114433568POE injector passive Vin 230V AC Vout 56V DC 60W DIN rail

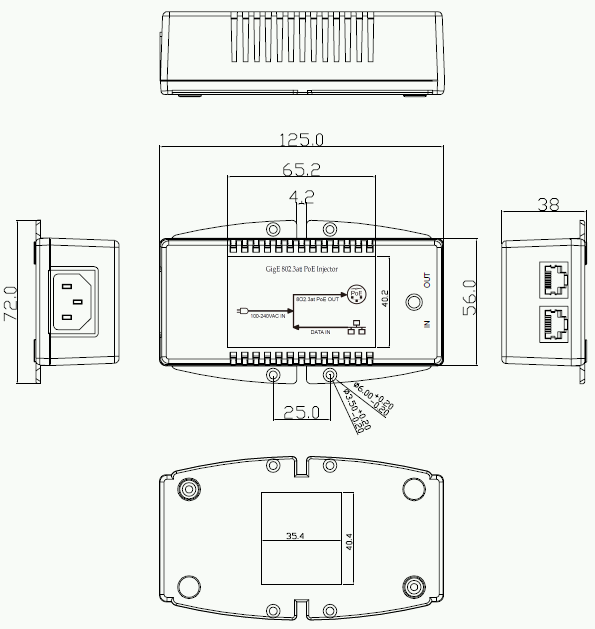

Dimensional drawing
dimensional drawing 11443357 GbE PoE injector Vin:100-240V AC Vout:56V DC PoE 60W permanent
