Technical data on item group 1144201
PoE injector 1/5 Gigabit Ethernet IEEE 802.3bt Vin: 10..60V DC

The Industrial 5 Gigabit Ethernet PoE (Power over Ethernet) injector feeds devices according to IEEE 802.3bt standard with 1000/5000MBit/s 5GBase-T (5 Gigabit Ethernet) and up to 70W operating current Integrated mounting holes enable wall mounting without additional Panels. Alternative mounting on 35mm DIN rail in combination with snap-in elements.
Technical data
Product	Industrial Gigabit Ethernet PoE injector (Midspan PSE) for wall mounting or DIN rail mountable operating temperature -40°C up to +50°C PoE according to IEEE 802.3bt/at/af
Port(s) electrical	Data input: 1000/5000MBit/s 5GBase-T 5 Gigabit Ethernet
PoE ports	Data output: 1000/5000MBit/s 5GBase-T 5 Gigabit Ethernet item 11442012x 11442024x 11442048x current output: +56V IEEE 802.3bt max. 60W max. 70W max. 70W Load min. - max. 0 A - 1.08 A 0 A - 1.25 A 0 A - 1.25 A Load reg. 5 % line reg. 1 % Ripple 1 % Noise 1 % Noise bandwidth from DC to 20MHz Ripple and Noise measured by paralleling a 0.1uF metalize capacitor on the test point
Pin assignment PoE	pin 1 2 3 4 5 6 7 8 data A+ A- B+ C+ C- B- D+ D- power V DC (-) V DC (-) V DC (+) V DC (+) V DC (+) V DC (+) V DC (-) V DC (-)
LEDs	on top (green): item: PoE RJ-45 left PoE RJ-45 right both PoE LEDs item: PoE RJ-45 left PoE RJ-45 right both PoE LEDs operating current ready 11442012x max. 30W mode A max. 30W mode B max. 60W IEEE 802.3bt 11442024x and 11442048x max. 35W mode A max. 35W mode B max. 70W IEEE 802.3bt
Housing	Plastic
Mounting	Wall mountable optional DIN rail mountable
Dimensions	LxWxH: 125x72x38mm
Power requirements	item 11442012x 11442024x 11442048x operating voltage 10V DC .. 15V DC 18V DC .. 26V DC 40V DC .. 60V DC redundant
Efficiency	min. 80% at full load
Operating temperature	-40°C ... +50°C
Cooling	Fanless - Free air cooling
Storage temperature	-40°C .. +85°C
relative humidity (non condensing)	5% .. 90%
Compliance	Safety EMC PoE IEC/EN62368-1 FCC Class B, IEC/EN55032 Class B IEEE802.3bt
Protection	Input protection: Fuse dual input pin and reverse protection: No Work output Short GND terminal will not damage the power supply and will auto-reset protection against reverse polarity: No function
Country of origin	Taiwan
Ordering information item 114420121 PoE injector 1GbE / 5GbE In: 10-15V DC Out: IEEE 802.3bt 50W 114420122 PoE injector 1GbE / 5GbE 10-15VDC -> IEEE 802.3bt 60W DIN rail 114420241 PoE injector 1GbE / 5GbE In: 18-36V DC Out: IEEE 802.3bt 70W 114420242 PoE injector 1GbE / 5GbE 18-36VDC -> IEEE 802.3bt 70W DIN rail 114420481 PoE injector 1GbE / 5GbE In: 40-60V DC Out: IEEE 802.3bt 70W 114420482 PoE injector 1GbE / 5GbE 40-60VDC -> IEEE 802.3bt 70W DIN rail

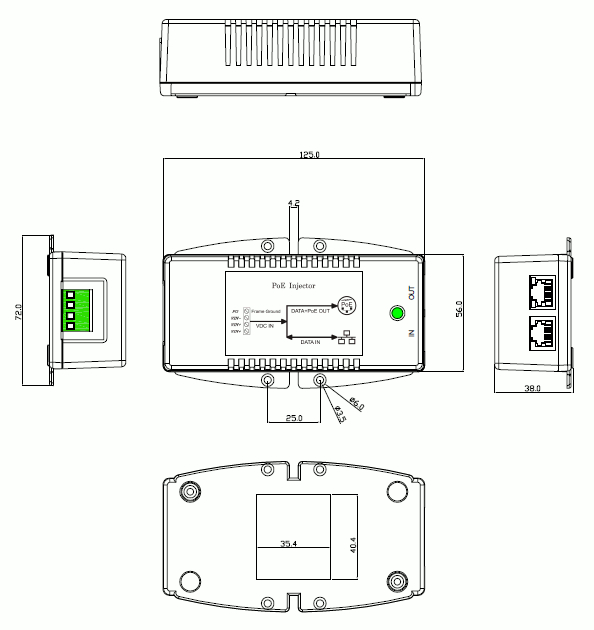

Dimensional drawing
The product description has been prepared with great care. No liability is accepted for fallacies or errors. Subject to change.
