Technical data on item group 106248
MPO/MTP adapter

MPO/MTP adapter
Our MPO/MTP adapter provides alignment for a male and female MPO/MTP connector. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body.
The adapter body material is polyetherimide with a stainless steel spring clip.

Technical data
FeaturesComplies with IEC 61754-7
REACH SvHC compliant
Materials compliant to RoHS2 (2011/65/EU)
Available in simplex flange and flangeless
Available with SC simplex or MTP footprint
Insertion Loss0.1 dB (typ.)
Mating Durability500
Operating temperature-25°C .. +70 °C, 12 cycles
ComplianceIEC 61300-2-2
IEC 61300-2-22
IEC 61300-3-4
Ordering information item
106248001MPO/MTP adapter MPO footprint 1:1 grey
106248101MPO/MTP adapter SCsx footprint 1:1 grey
106248102MPO/MTP adapter SCsx footprint revers black
106248111MPO/MTP adapter SCsx footprint Aligned 1:1 grey Schraublöcher
106248112MPO/MTP adapter SCsx FP revers (Up-Down) black Schraublöcher

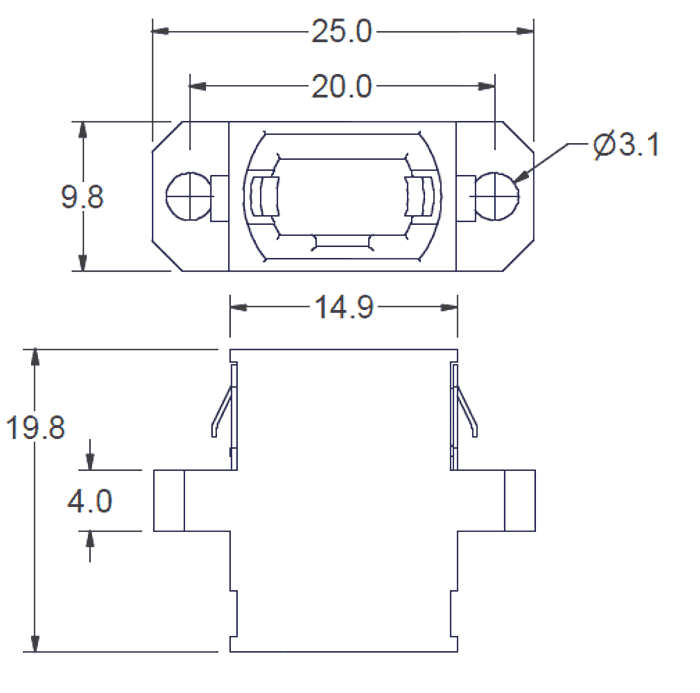

Dimensional drawing
dimensional drawing 106248 MPO/MTP adapter
The product description has been prepared with great care. No liability is accepted for fallacies or errors. Subject to change.
