Technical data on item group 1014234
Industrial VDSL2 master/slave bridge with 4x Gigabit Ethernet

Industrial VDSL2 master/slave bridge with 4x Gigabit Ethernet
The rugged Industrial Ethernet VDSL2 bridge in fanless metal case transmits Ethernet signals up to a max. distance of 1.2km via coaxial cable or RJ-11 2-wire line. The mounting option for 35mm DIN rail or wall mounting and the extended temperature range allow the use in almost all areas of industrial data communication.

Technical data
ProductIndustrial VDSL2 master/slave bridge with 4 Gigabit Ethernet ports
Port(s) electricalEthernet:
4x RJ-45 10/100/1000MBit/s 1000Base-T
VDSL2:
Coaxial 1x BNC
2-wire phone line 1x RJ11
cableDistance up to 1,2 km
Twisted Pair telehone wires:
RJ11 Twisted Pair AWG24 or better
Coaxial cable: 75 Ohm
RG-6/U < 12 Ohm/300m
RG-59/U < 30 Ohm/300m
DIP switch4 positions:
No.
1
2
3
4
OFF
CO central
G.INP
asymmetric
12dB
ON
CPE client
interleaved
symmetric
8dB
LEDsSystem: power1, power2, fault
1000Base-T LNK/ACT
10/100Base-TX LNK/ACT
VDSL
CO
CPE
Bandwidth RJ-11
(phone line)

Distance
m
200
400
600
800
1000
1200
symmetric
MBit/s
8 dB
143/148
116/115
71/69
49/32
19/25
16/23
12 dB
129/136
99/96
59/55
38/24
15/24
6/20
asymmetric
MBit/s
8 dB
92/190
67/164
37/112
24/56
9/45
5/30
12 dB
85/174
57/144
28/94
22/49
7/40
3/28
Bandwidth BNC
(coaxial cable)

Distance
m
200
400
600
800
1000
1200
symmetric
MBit/s
8 dB
131/144
93/113
62/66
40/29
20/25
13/20
12 dB
117/123
89/96
52/43
37/24
15/26
12/20
asymmetric
MBit/s
8 dB
84/184
49/148
33/75
17/50
7/42
4/27
12 dB
75/166
47/128
26/73
13/39
5/29
3/22
Standard(s)IEEE 802.3 10Base-T
IEEE 802.3u 100Base TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x full duplex pause frame flow-control
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
ITU-T G.993.5 G.Vectoring and G.INP
ITU-T G.998
HousingMetal case
DimensionsWxDxH 32x87,8x135 mm
Power consumption5.7 W
Operating temperature-40°C .. 75°C
Storage temperature-40°C .. 75°C
relative humidity
(non condensing)
5% .. 95%
Weight185g
Mounting35mm DIN rail or wall mountable
Power requirements12V .. 48V DC
ComplianceCE, FCC Part 15 Class A
Country of originTaiwan
Ordering information item
101423401Industrial Ethernet VDSL2 extender 1x RJ11 1xBNC 4x RJ-45 GbE
Ordering information Accessories
11524024RPower supply 85-264V AC, OUT: 24V DC, 40W, -20..70°C DIN rail
063600001DIN rail installation panel for 19 inch distribution rack

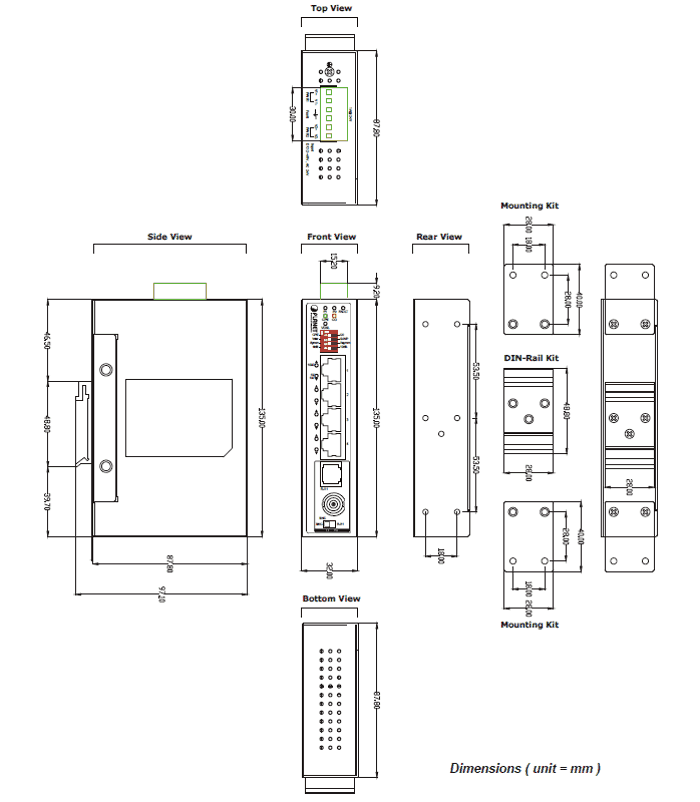

Dimensional drawing
dimensional drawing 1014234 Industrial VDSL2 master/slave bridge with 4x Gigabit Ethernet
