Technical data on item group 0961126
Gigabit Ethernet industrial switch managed 8x RJ-45 4x SFP slot

Gigabit Ethernet industrial switch managed 8x RJ-45 4x SFP slot
The manageable 12 port Gigabit Industrial Ethernet switch with 4 dual speed SFP ports may be used for constructing a star structure, a line structure or, by applicating the RSTP, MSTP or KAMR protocol, a ring structure. The 8 Gigabit Ethernet RJ-45 ports are for connecting of up to 8 end devices. 4 dual speed SFP slots provide Fast Ethernet or Gigabit Ethernet fiber optic connections to remote networks or servers.
Devices with certification according to IEC 68150-3 and IEEE 1613 for power utility automation are also optionally available.

Technical data
ProductManaged Industrial Gigabit Ethernet switch 8x RJ45 4x dual speed SFP
Port(s) electrical8x 10/100/1000Mb/s RJ-45 Auto MDI/MDI-X
SFP Ports4x 100BASE-FX 1000BASE-X dual speed SFP ports with DDM (Digital Diagnostic monitoring)
Flow controlIEEE802.3x (full-duplex), back pressure (half-duplex)
Framesizemax. 9600 Bytes
ManagementHTTP/HTTPS/SSHv2/CLI telnet/CLI console
SNMP v1/v2c/v3/RMON
DHCP/DHCPv6 client, DHCP relay, DNS client. NTPv4
IPv6 support, system Syslog
configuration down/upload, software upload
NAS, 802.1X, MAC/WEB/CLI authentication
IP MAC Bindung, TACACS+, IP source guard
console: RJ-45 connector, interface: RS-232
Management / Standards802.1Q/MAC-based/Protocol-based/Private/IP subnet VLAN, port isolation
Storm control for UC/MC/BC Packete, static MAC configuration
IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping, port mirroring
Spanning Tree MSTP, RSTP, STP
KAMR Auto Multi-Ring
QoS 802.1Q, MAC-based, Protocol-based, Private, IP subnet VLAN, port isolation
LACP port link aggregation
LEDsDevice: Power, management status
port: Speed, link/activity status
SFP: Speed, link/activity status
CasingFanless metal case
Mounting35mm DIN rail, optional wall mountable
DimensionsWxDxH 60x106x140 mm
Fault Alarm ContactPower failure, specific port link error
interface: 2 terminal contacts (30VDC/1A max. or 120VAC/0,5A max.)
Power requirementsTerminal block: 2 +/- Kontaktpaare for redundant power supply
polarity reversal protection - shutdown
operating voltage +12V DC ... +60V DC
Power consumption10W max.
Operating temperature-30°C .. +70°C
relative humidity
(non condensing)
5% .. 95% non condensing
Standard(s)IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.1x, 802.1w, 802.1D, 802.1Q
ComplianceFCC/CE/VDDI Class A,
LVD/IEC 60950-1 safety
EN 55024 Immunity for industrial environment
EN 61000-3-2,
EN 61000-3-3,
IEC 60068-2-64 Vibration,
IEC 60068-2-27 Shock 30G test

additional certification (only item 09615713)
IEC 61850-3 and IEEE 1613
(substation automation)
Country of originTaiwan
Ordering information item
09615654Industrial GbE switch managed 8xRJ-45 + 4x dual speed SFP
09615713Industrial GbE switch managed 8xRJ45 4xSFP IEC8150-3 IEEE1613
Ordering information Accessories
12233405Gigabit Ethernet SFP multimode 850nm 550m -40°C..+85°C DDM
12233402Gigabit Ethernet SFP multimode 1310nm 2km -40°C..+85°C DDM
12233420Gigabit Ethernet SFP singlemode 1310nm 20km -40°C..+85°C DDM
12233202Fast Ethernet SFP multimode 1310nm 2km -40°C..+85°C
12233220Fast Ethernet SFP singlemode 1310nm 20km -40°C..+85°C
11526048RPower supply 100-264V AC, OUT: 48V-56V DC, 60W, -20-70°C DIN r
Dimensional drawing

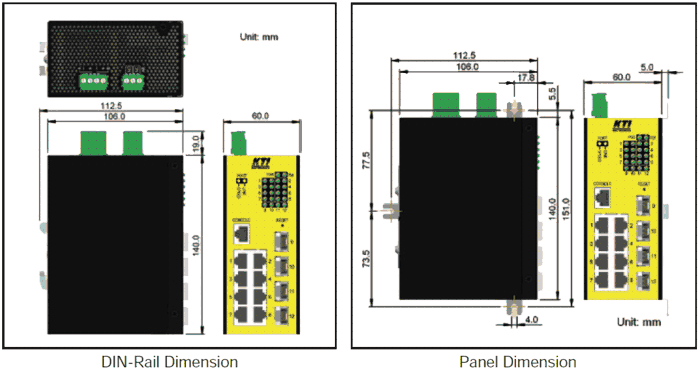

dimensional drawing 0961126 Gigabit Ethernet industrial switch managed 8x RJ-45 4x SFP slot
