Technical data on item group 12985004
5 port industry PoE+ switch IN 24VDC OUT 4x 802.3at 30W

5 port industry PoE+ switch IN 24VDC OUT 4x 802.3at 30W
Rugged 5 port Industrial Fast Ethernet High PoE Power over Ethernet switch in fanless metal case.
Four RJ-45 ports provide data transmission and operating current up to 30 W per end device.
An additional uplink port provides the connection to the network.
The input voltage range of 12V..36V DC allows the operation in 24V areas without additional use of transformers.
The redundant DC power input ports, the isolated alarm contact, the mounting options for 35mm DIN rail or wall mounting and the extended temperature range allow the use in almost all areas of industrial data communication.

Technical data
ProductIndustrial Ethernet PoE switch with
4 Fast Ethernet RJ-45 high PoE ports
input voltage 12..36V DC
Casingfanless IP30 metal case
DimensionsWxHxD 46x142x99mm
Power requirementsInput voltage 12..36V DC at screw terminal
removable terminal block
consumption max. 145W incl. PoE
Data ports5x Fast Ethernet RJ-45
Bit rate5x 10/100MBit/s Fast Ethernet full duplex RJ-45 ports
Flow controlIEEE 802.3x Flow Control and Back Pressure
PoE ports4x PoE+ (High PoE)
IEEE 802.3at 53V DC max. 30W /Port
Pins 1+ 2+ 3- 6-, Mode A

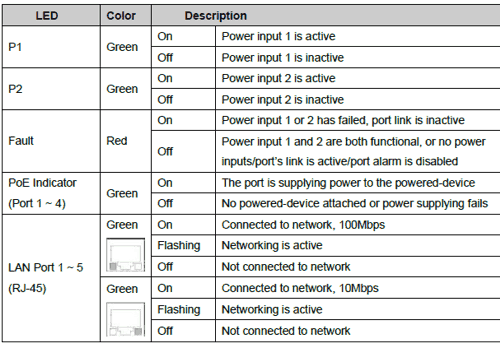

LEDs
system:fault
power 1
power 2
red
green
green
per port:link / active / speed / PoE status
Mounting35mm DIN rail mountable
wall-/panel mounting
both included in delivery
Fault Alarm Contactpresent
Operating temperature
itemoperating temperature
129850041  -10°C ... +70°C
129850042-40°C ... +75°C
Stability testsIEC60068-2-32 (free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Safety Standard(s)FCC, CE, UL 508
Ordering information item
1298500415 port industry PoE+ switch IN 24V DC OUT 4x IEEE 802.3at 30W
1298500425 port industry PoE+ switch IN 24VDC OUT 4x 802.3at 30W extT
Ordering information Accessories
060812231Field installable RJ-45 plug for installation cable
063600001DIN rail installation panel for 19 inch distribution rack

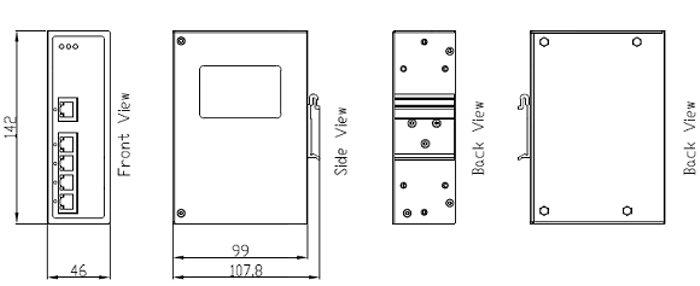

Dimensional drawing
dimensional drawing 12985004 5 port industry PoE+ switch IN 24VDC OUT 4x 802.3at 30W
The product description has been prepared with great care. No liability is accepted for fallacies or errors. Subject to change.
