Technical data on item group 12983140
Industrial 10GbE switch 2x SFP+ 8x GbE RJ-45 -40°C..+60°C

Industrial 10GbE switch 2x SFP+ 8x GbE RJ-45 -40°C..+60°C
Rugged 10 port Industrial 10 Gigabit Ethernet switch in a fanless metal case.
Two modular 10 Gigabit Ethernet SFP+ slots stehen than flexible uplink / cascading ports for Verfügung.
The redundant DC power input ports, the isolated alarm contact, the mounting options for 35mm DIN rail or wall mounting and the extended temperature range allow the use in almost all areas of industrial data communication.

Technical data
ProductIndustrial Ethernet switch with
2 10Gigabit Ethernet SFP+ slots and
8 Gigabit Ethernet RJ-45 ports
Casingfanless IP30 metal case
DimensionsWxHxD 54x142x99mm
Power requirementsInput voltage 12..48V DC at screw terminal
consumption: 16W
removable terminal block
Data ports2x 10Gigabit Ethernet SFP+
8x Gigabit Ethernet RJ-45
Bit rate2x 10Gigabit Ethernet (10GbE) 10GBit SFP+ slot
8x 10/100/1000MBit/s Gigabit Ethernet RJ-45 ports
Flow controlIEEE 802.3x Flow Control and Back Pressure
Framesize9216 Bytes Jumbo Frame Support
Mounting35mm DIN rail mountable
wall-/panel mounting
both included in delivery
Fault Alarm Contactpresent
Operating temperature
itemoperating temperature
129831401  -40°C ... +60°C
Stability testsIEC60068-2-32 (free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Safety Standard(s)UL 61010-1, 61010-2-201 (pending)
Ordering information item
129831401Industrial 10GbE switch 2x SFP+ 8x GbE RJ-45 -40°C..+60°C
Ordering information Accessories
1223390310 Gigabit Ethernet SFP+ multimode 850nm 300m DDM
1223391010 Gigabit Ethernet SFP+ singlemode 1310nm 10km DDM

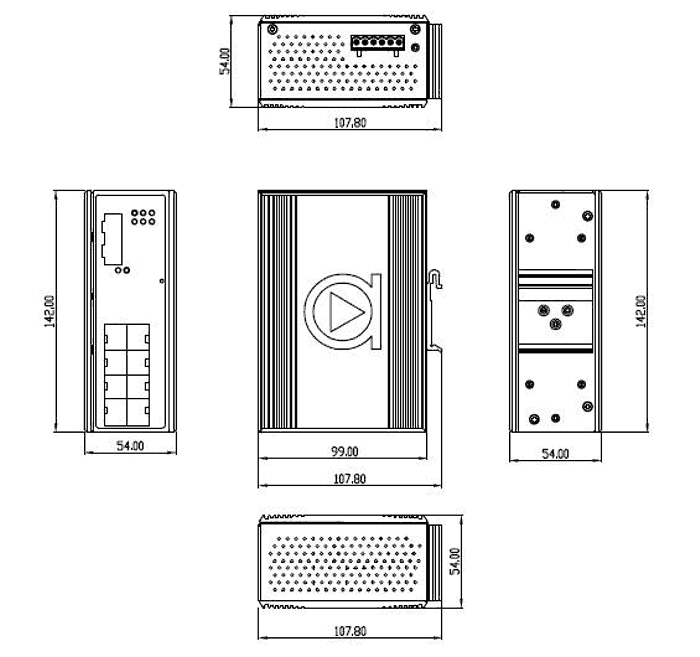

Dimensional drawing
dimensional drawing 12983140 Industrial 10GbE switch 2x SFP+ 8x GbE RJ-45 -40°C..+60°C
The product description has been prepared with great care. No liability is accepted for fallacies or errors. Subject to change.
