Technical data on item group 12981243
Industrial Gigabit Ethernet switch 8x RJ-45 and 4x SFP managed

Industrial Gigabit Ethernet switch 8x RJ-45 and 4x SFP managed
Rugged manageable 12 port Industrial Gigabit Ethernet switch in fanless metal case.
Four modular Dual Speed Gigabit Ethernet SFP slots provide flexible uplink / cascade ports.
The redundant DC power input ports, the isolated alarm contact, the mounting options for 35mm DIN rail or wall mounting and the extended temperature range allow the use in almost all areas of industrial data communication.

Technical data
ProductManageable Industrial Ethernet switch with
4 Gigabit Ethernet dual speed SFP slots and
8 Gigabit Ethernet RJ-45 ports
Casingfanless IP30 metal case
DimensionsWxHxD 54x142x99mm
Power requirementsOperating voltage 12V .. 48V DC redundant
removable terminal block
consumption 15W
Data ports4x Gigabit Ethernet Dual Speed SFP
8x Gigabit Ethernet RJ-45
Bit rate4x Gigabit Ethernet 100/1000MBit dual speed SFP slot
8x 10/100/1000MBit/s Gigabit Ethernet RJ-45 ports
Flow controlIEEE 802.3x Flow Control and Back Pressure
Framesize9.6KBytes Jumbo Frame Support
Management / StandardsWeb / Telnet / RS-232 CLI / SNMP v1/v2c/v3
TFTP / SNTP / SMTP v1/v2c/v3/ RMON / HTTP / HTTPS
Syslog / DHCP Option 66/67/82, SSH/SSL
Modbus TCP, LLDP
IPv4, IPv6
STP, RSTP, MSTP,
G.8032 ERPS (Recovery Time <50ms)
IGMP v1/v2 max. 256 groups
QoS/CoS/ToS IEEE802.1p
VLAN IEEE802.1Q
System Warning Setting for
Automatic Warning through E-Mail / Relay Output
USB 2.0 for Configuration Backup
LEDs
system:fault
power 1
power 2
red
green
green
per port:link / active / speed
Mounting35mm DIN rail mountable
wall-/panel mounting
both included in delivery
Fault Alarm Contactpresent
Operating temperature
itemoperating temperature
129812431  -10°C ... +70°C
129812432-40°C ... +75°C
Stability testsIEC60068-2-32 (free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Safety Standard(s)FCC, CE, UL-61010-2-201 (Pending)
Ordering information item
129812431Industrial switch managed 8x RJ-45 4x SFP -10..+70°C
129812432Industrial switch managed 8x RJ-45 4x SFP -40..+75°C
Ordering information Accessories
12233405Gigabit Ethernet SFP multimode 850nm 550m -40°C..+85°C DDM
12233402Gigabit Ethernet SFP multimode 1310nm 2km -40°C..+85°C DDM
12233420Gigabit Ethernet SFP singlemode 1310nm 20km -40°C..+85°C DDM
12233202Fast Ethernet SFP multimode 1310nm 2km -40°C..+85°C
12233220Fast Ethernet SFP singlemode 1310nm 20km -40°C..+85°C
11522024RPower supply 85-264V AC, OUT: 24V DC, 24W, -20..70°C DIN rail
11524024RPower supply 85-264V AC, OUT: 24V DC, 40W, -20..70°C DIN rail
079866446Power supply 85..264V AC, OUT: 24V DC, 1.3A -25..70°C DIN rail
063600001DIN rail installation panel for 19 inch distribution rack

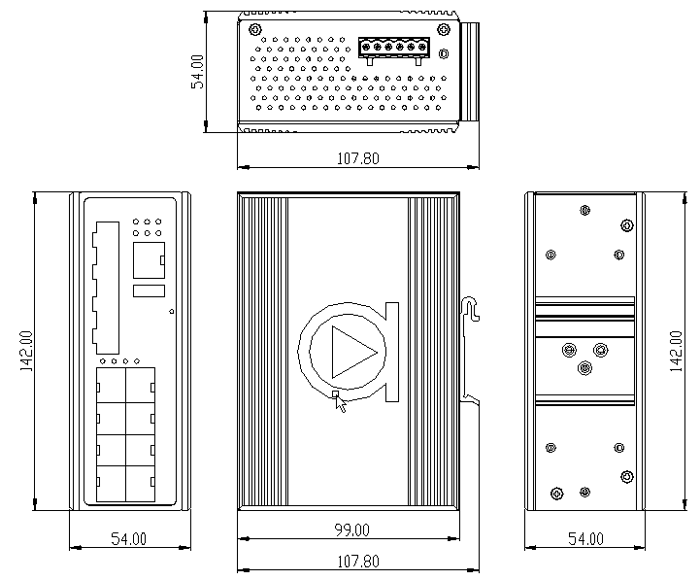

Dimensional drawing
dimensional drawing 12981243 Industrial Gigabit Ethernet switch 8x RJ-45 and 4x SFP managed
