Technical data on item group 114415D
PoE injector IN:10~15V,18~36V,36~72V DC OUT:IEEE 802.3at 35W

PoE injector IN:10~15V,18~36V,36~72V DC OUT:IEEE 802.3at 35W
The Industrial high PoE Fast Ethernet Power over Ethernet injector feeds devices according to IEEE 802.3at standard with 10Base-T Ethernet or 100Base-TX Fast Ethernet and 35W operating current rsp. Alternatively devices according to IEEE 802.3af with 15.4W.

integrated mounting holes enable wall mounting without additional Panels or mounting on 35mm DIN rail in combination with snap-in elements.

Technical data
ProductIndustrial Fast Ethernet PoE injector 35W high power
Port(s) electricalData input: 100Base-TX Fast Ethernet
PoE portsData output:
100Base-TX Fast Ethernet

current output:
+56V 35W
Load min./max.0.01A / 0.625A
Load reg.5 %
line reg.1 %
Ripple1 %
Noise1 %
Noise bandwidth from DC to 20MHz
Ripple and Noise measured by paralleling a 0.1uF metalize capacitor on the test point
Pin assignment PoE
pin
1
2
3
4
5
6
7
8
data
RX+
RX-
TX+


TX-
power



V DC (+)
V DC (+)

V DC (-)
V DC (-)
LEDs
ready:red
IEEE 802.3at / 802.3af PoE current ok:green
CasingPlastic
MountingWall mountable
optional DIN rail mountable
DimensionsLxWxH: 125x75x38mm
Power requirements
item


11441512D
11441524D
11441548D
input voltage
redundant
from ~ up to
10V ~ 15V DC
18V ~ 36V DC
36V ~ 72V DC
input current


3.6A @ 12V DC
1.56A @ 24V DC
0.8A @ 48V DC
terminal pin assignment current input redundant
Efficiency
itemmin.%
at full Load
input Voltage
11441512D
11441524D
11441548D
75%
80%
80%
10V DC ~ 15V DC
18V DC ~ 36V DC
36V DC ~ 72V DC
Operating temperature-40°C .. +75°C
CoolingFanless - Free air cooling
Storage temperature-40°C .. +85°C
relative humidity
(non condensing)
5% .. 90%
ComplianceUL 1950, CSA 22.2, EN60950
FCC Class B, EN55022 Class B
ProtectionShort Circuit Protection
Output Short GND Terminal will not damage the Power Supply and will Auto-Reset.
Input Fuse Protection.
Dual Input Pin & Reverse Protection -> NO Work
Overcurrent
item
11441512D
11441524D
11441548D
120% ~ 160% @ 12V DC input F.L.
120% ~ 160% @ 24V DC input F.L.
120% ~ 160% @ 48V DC input F.L.
Country of originTaiwan
Ordering information item
11441548DPoE injector IN:36-72V DC OUT:IEEE 802.3at high power 35W
114415486PoE injector IN:36..72V DC OUT:IEEE 802.3at 35W DIN rail
Ordering information Accessories
114462512PoE Power over Gigabit Ethernet splitter 12V 25W IEEE802.3at
114462612PoE Power over Gigabit Ethernet splitter 12V 25W IEEE802.3at DR
114462524PoE Power over Gigabit Ethernet splitter 24V 25W IEEE802.3at
114462624PoE Power over Gigabit Ethernet splitter 24V 25W IEEE802.3at DR
060812231Field installable RJ-45 plug for installation cable

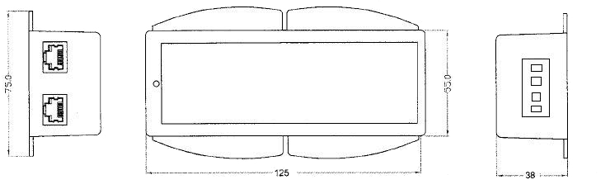

Dimensional drawing
dimensional drawing 114415D PoE injector IN:10~15V,18~36V,36~72V DC OUT:IEEE 802.3at 35W
